  2. SolaX X3-PRO-10K-G2 Generation 2 Pro Series – 10kW Three-Phase On-Grid Inverter
SolaX X3-PRO-10K-G2 Generation 2 Pro Series – 10kW Three-Phase On-Grid Inverter

SolaX X3-PRO-10K-G2 Generation 2 Pro Series – 10kW Three-Phase On-Grid Inverter

https://www.mainergy.co.nz/web/image/product.template/544/image_1920?unique=694726b

$ 0.00 0.0 NZD $ 0.00 GST Excluded

$ 1.00 GST Excluded

Login to see price

This combination does not exist.

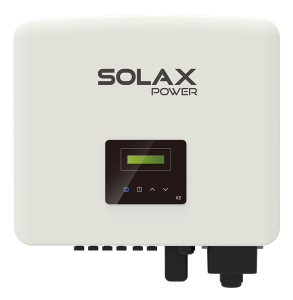

Generation 2 Pro Series – 10kW Three-Phase On-Grid Inverter

Overview

The SolaX X3-PRO-10K-G2 is a cutting-edge, three-phase on-grid inverter from the Pro Series, designed for residential and small commercial solar systems. Combining high efficiency, smart features, and a compact, installer-friendly design, it delivers reliable performance and seamless integration with modern solar setups.

Key Features

  • 98.3% Maximum Efficiency: Captures more solar energy with advanced MPPT (Maximum Power Point Tracking) and minimal power loss.
  • Dual MPPT Design: Optimizes output under partial shading and supports flexible panel configurations.
  • Wide Voltage Range (180V–960V): Starts generating power earlier and continues later, boosting daily energy yield by up to 10%.
  • Fanless Cooling System: Silent operation and extended lifespan (approx. 20 years).
  • IP66 Weatherproof Enclosure: Built for indoor or outdoor installation, resistant to dust and water.
  • Smart Monitoring: WiFi, Ethernet, or RS485 connectivity for real-time tracking via the SolaX Cloud app (iOS/Android compatible).
  • Enhanced Safety: Includes a DC switch, Type II SPD (Surge Protection Device) for AC/DC, and anti-islanding protection to meet global standards.
  • Zero-Export Function: Prevents excess energy from feeding into the grid, ensuring compliance with local regulations.
  • Easy Installation: Lightweight (approx. 23 kg) and compact (503 × 503 × 199 mm) with a simple mounting system.

Technical Specifications

  • AC Output Power: 10,000W
  • Max DC Voltage: 1,000V
  • Start-up Voltage: 180V
  • MPPT Voltage Range: 180V–960V
  • Max PV Input Current: 12.5A per MPPT channel (dual inputs)
  • Dimensions: Approx. 503 × 503 × 199 mm
  • Weight: Approx. 23 kg
  • Cooling: Natural convection (fanless)
  • Communication: WiFi, Ethernet, RS485 (LAN optional)
  • Protection: IP66, Type II SPD (AC/DC), anti-islanding, over/under voltage & frequency protection
  • Certifications: CE, TUV, and regional grid standards (check local compliance)
  • Warranty: 10 years standard, extendable up to 15 years (additional purchase required)

Applications

  • Residential rooftop solar systems with three-phase power.
  • Small commercial or light industrial PV installations.
  • Grid-connected systems with export limits or feed-in control.

Why Choose SolaX X3-PRO-10K-G2?

Engineered for efficiency and durability, this inverter ensures maximum energy savings and hassle-free operation. Its smart features and robust design make it ideal for modern solar projects. For more details, download the full datasheet at www.solaxpower.com (#) or contact our team for a quote.
