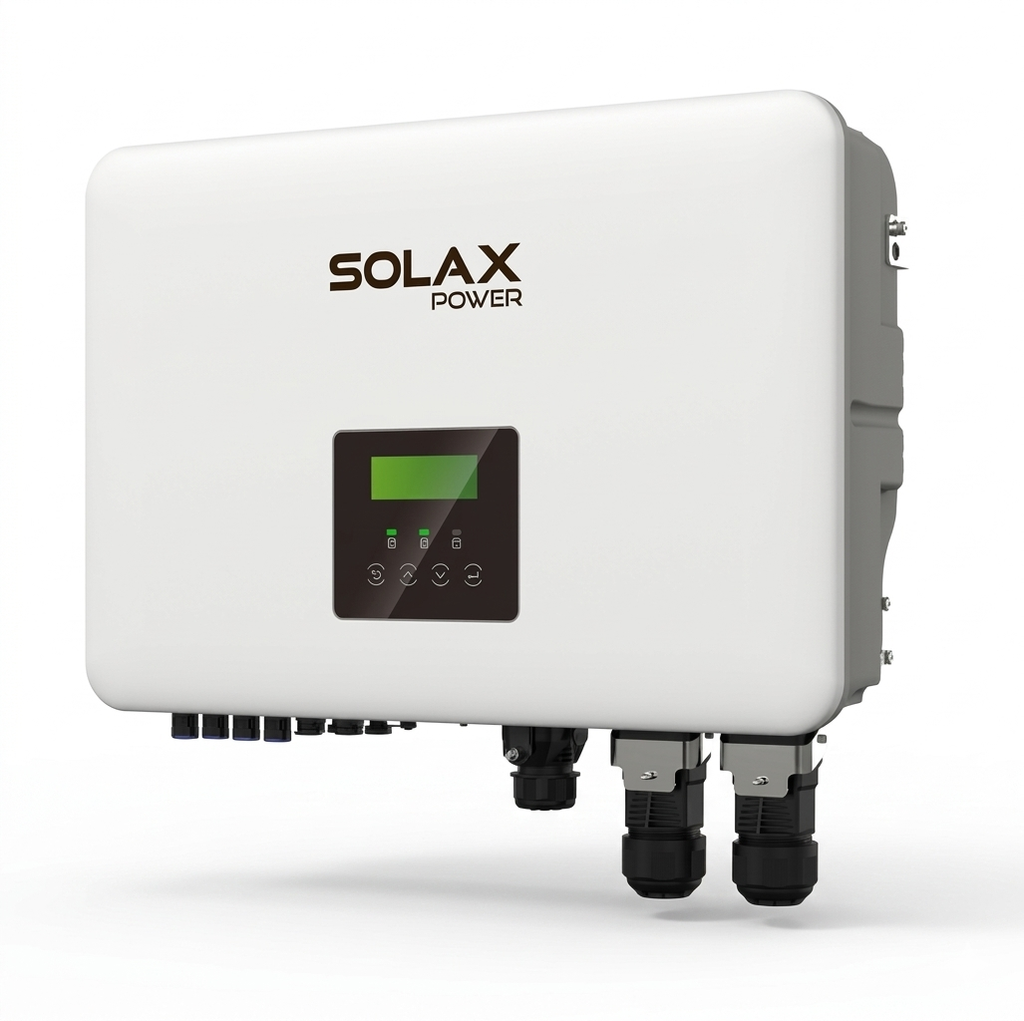

SolaX X1-VAST-10K Single-Phase Hybrid Inverter
The X1-VAST-10K is the high-power flagship of the X1-VAST series, offering a nominal AC output of 9,999W. It is designed for large residential systems requiring maximum solar harvesting and robust backup capabilities.
Key Performance Specifications
- Massive Solar Input: Supports up to 20,000 Wp of PV input power, allowing for 200% oversizing to maximize energy production.
- Quad MPPT Design: Features 4 MPP trackers with a wide operating voltage range of 40-560V.
- Ultra-Low Start-up: Begins generating power at just 50V, extending the operational window during dawn and dusk.
- High-Current Support: Handles a maximum DC input current of 20A per MPPT, making it compatible with high-power modern solar modules.
- Heavy-Duty Backup: Delivers 10,000 VA of continuous off-grid power, with a peak output of 20,000 VA for 10 seconds.
Technical Data: X1-VAST-10K
| Feature | Specification |
| Max. DC Voltage | 600 V |
| Nominal AC Output Power | 9,999 W |
| Max. AC Output Current | 43.5 A |
| Max. Efficiency | 97.6% |
| UPS Switch Time | <10 ms |
| Battery Voltage Range | 80-480 V |
| Protection Degree | IP66 |
Smart & Safe Operation
- V2G/V2H & VPP Ready: Fully prepared for smart grid integration, supporting V2G/V2H for vehicle-to-home energy sharing and OpenADR for virtual power plants.
- Simplified Expansion: Features dual battery ports and a 2-in-1 function for effortless capacity scaling.
- Comprehensive Protection: Includes Type II Surge Protection (SPD) on both DC and AC sides, with optional AFCI to mitigate fire risks.
- Quiet & Durable: Utilizes natural convection cooling to maintain noise levels below 35 dB, suitable for indoor or outdoor installation
