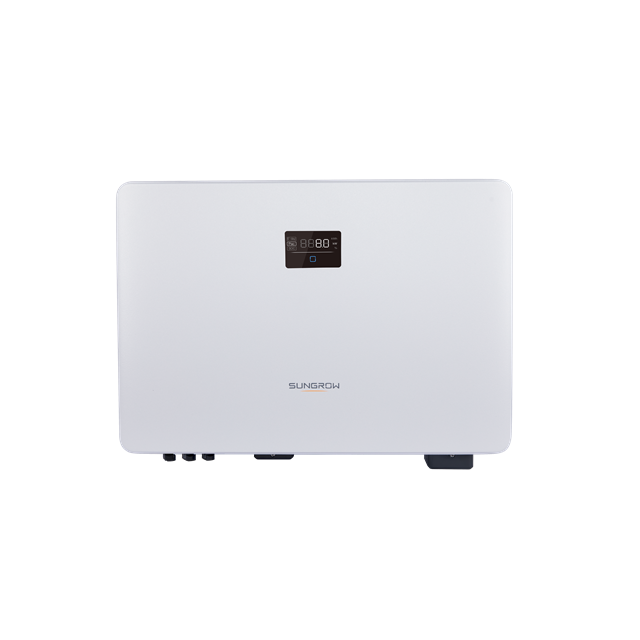

Sungrow SG10RS-ADA – 10kW Single Phase PV Inverter
High-Efficiency Solar Power for Residential Systems
The Sungrow SG10RS-ADA is a 10kW single-phase string inverter designed for residential and small commercial solar systems. Featuring three MPPTs, IP65 outdoor-rated protection, and built-in WiFi, it delivers high energy yields, flexible panel layouts, and robust reliability. Compatible with high-power and bifacial PV modules, this inverter ensures optimal performance even in challenging conditions, with smart monitoring via the iSolarCloud platform for real-time system management.
Key Features:
- Triple MPPT Design: Three Maximum Power Point Trackers support flexible panel layouts, allowing connection to independent solar arrays (e.g., North, East, West orientations) for maximum energy harvest.
- High Efficiency: Achieves up to 97.8% maximum efficiency for superior energy conversion and savings.
- Wide MPPT Voltage Range: Low startup voltage and wide range (40V–560V) enable earlier production and extended operation in low-light conditions.
- Smart PID Recovery: Built-in function mitigates Potential Induced Degradation (PID), ensuring long-term panel performance.
- Robust Safety Features: Includes arc fault circuit interrupter (AFCI), Type II DC & AC surge protection, and C5 corrosion resistance for reliable operation.
- IP65 Outdoor Design: Dust- and water-resistant enclosure, ideal for harsh outdoor environments.
- User-Friendly Setup: Lightweight (19kg), compact design with plug-and-play installation (professional installation required).
- Advanced Monitoring: WiFi-enabled with one-click access to iSolarCloud for real-time data (10-second refresh), 24/7 live monitoring, and online IV curve diagnostics.
Technical Summary:
- Rated Output Power: 10,000W (10kW)
- Max PV Input Voltage: 600V DC
- MPPT Voltage Range: 40V–560V
- Number of MPPTs: 3
- Max Efficiency: 97.8%
- Compatible Modules: High-power PV modules and bifacial modules
- Communication: WiFi (included), RS485, optional Ethernet
- Protection Features: Arc fault circuit interrupter (AFCI), Type II DC & AC SPD, DC reverse polarity protection, AC short-circuit protection, leakage current protection, ground fault monitoring
- Enclosure Protection: IP65 (dust- and water-resistant)
- Cooling: Passive cooling (no derating below 45°C ambient temperature)
- Weight: Approx. 19kg
- Dimensions: 490 × 340 × 170 mm
- Warranty: 10 years (parts and labor, first 5 years full replacement, next 5 years parts only, subject to region)
Note: The SG10RS-ADA includes a smart meter for consumption and production monitoring. It requires professional installation by a certified electrician to comply with local electrical standards (e.g., AS/NZS 5033). Ensure compatibility with PV modules and system design before purchase. Sungrow Label Kit may be required for compliance with the latest AS/NZS 5033 standards.
