SolaX Triple Power TP-HS50E – 5.1kWh High Voltage Lithium Battery
SolaX Triple Power TP-HS50E – 5.1kWh High Voltage Lithium Battery
SolaX Triple Power TP-HS50E – 5.1kWh High Voltage Lithium Battery

SolaX Triple Power TP-HS50E – 5.1kWh High Voltage Lithium Battery

https://www.mainergy.co.nz/web/image/product.template/458/image_1920?unique=fad5c9b

$ 0.00 0.0 NZD $ 0.00 GST Excluded

$ 0.00 GST Excluded

Login to see price

  • Stock Available In
  • Energy Storage Brands
  • Energy Storage Voltages
  • Energy Storage Kilowatt-hours (kWh)

This combination does not exist.


Safe and Scalable Energy Storage for Solar Systems

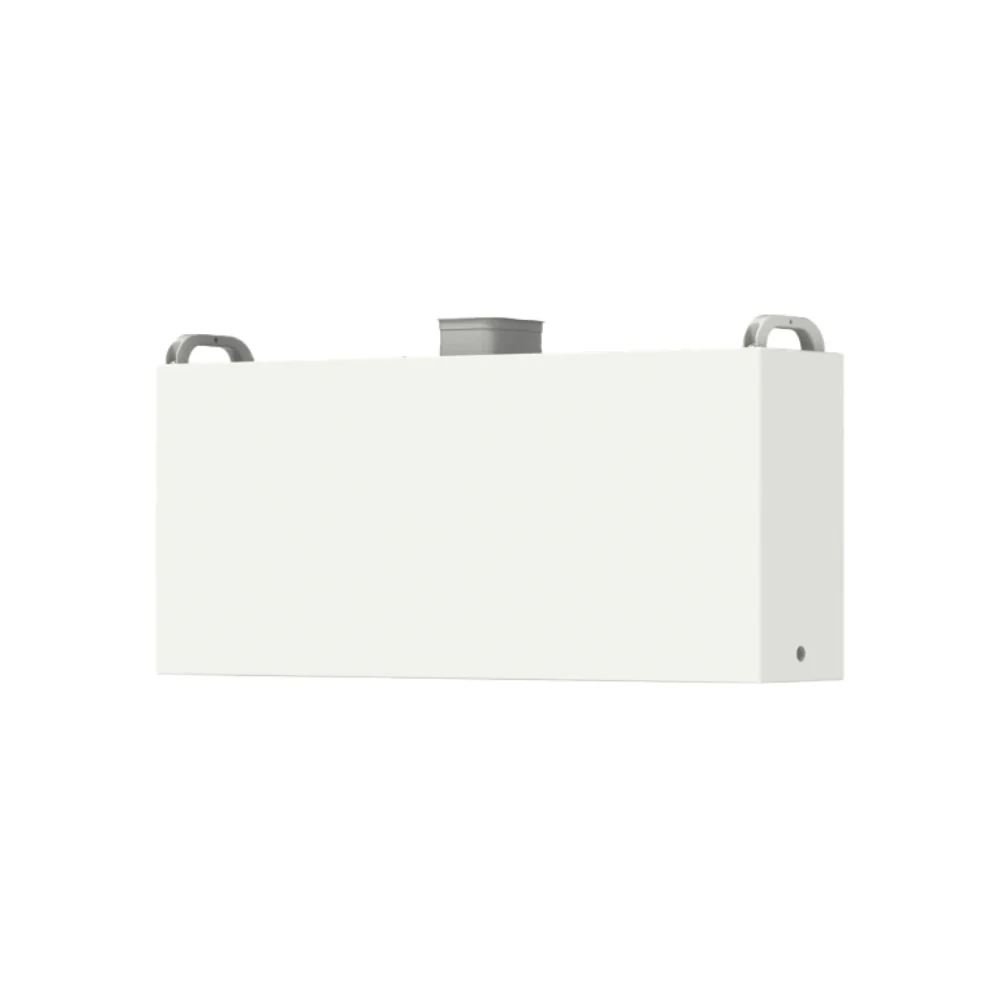

The SolaX Triple Power TP-HS50E is a high-voltage 5.1kWh lithium battery module designed for the SolaX IES energy storage system. Using advanced LiFePO₄ technology, it offers high efficiency, long lifespan, and robust safety for residential and small commercial solar applications. Paired with a compatible SolaX hybrid inverter and Battery Management System (BMS), it enables homeowners to store excess solar energy, reduce grid dependency, and ensure reliable backup power.


 Key Features:

  • High-Capacity Storage: Delivers 5.1kWh of usable energy with 90% Depth of Discharge (DoD) for maximum efficiency.
  • Scalable Design: Supports up to 4 modules (20.4kWh total) with X1-IES inverters or 6 modules (30.6kWh total) with X3-IES inverters.
  • Advanced LiFePO₄ Technology: Provides 6000+ charge cycles, high energy density, and eco-friendly operation with no toxic materials.
  • Robust Safety Features: Includes overvoltage, overcurrent, short-circuit, and thermal protection for secure operation.
  • IP66 Protection: Dust- and water-resistant design, suitable for indoor or outdoor installation.
  • Easy Installation: Compact, lightweight (approx. 33kg) module with plug-and-play setup (professional installation required).
  • Smart Monitoring: Integrates with SolaX Cloud for real-time performance tracking and remote management.


 Technical Summary:

  • Battery Type: High-voltage LiFePO₄ (Lithium Iron Phosphate)
  • Nominal Capacity: 5.1kWh (90% DoD, usable capacity ~4.6kWh)
  • Scalable Capacity: Up to 20.4kWh (4 modules, X1-IES) or 30.6kWh (6 modules, X3-IES)
  • Nominal Voltage: 102.4V (high-voltage module)
  • Operating Voltage Range: 85V–465V (system-dependent)
  • Cycle Life: ≥6000 cycles (at 25°C, 90% DoD)
  • Communication Port: CAN/RS485 (for BMS and inverter integration)
  • Protection Features: Overvoltage, overcurrent, short-circuit, thermal protection
  • Enclosure Protection: IP66 (dust- and water-resistant)
  • Mounting: Floor or wall-mounted (stackable design)
  • Weight: Approx. 33kg per module
  • Dimensions: Approx. 482 × 417 × 181 mm (confirm with spec sheet)
  • Warranty: 5 years standard (10 years optional, subject to region and terms)


 Note: The TP-HS50E battery module requires a SolaX Battery Management System (e.g., TBMS-MCS0800E) and a compatible SolaX hybrid inverter (e.g., X1-IES or X3-IES) for operation, sold separately. For three-phase systems, a minimum of two modules is required. Professional installation by a certified electrician is mandatory to comply with local electrical standards.
