High-Capacity, Intelligent, and Built for Energy Flexibility

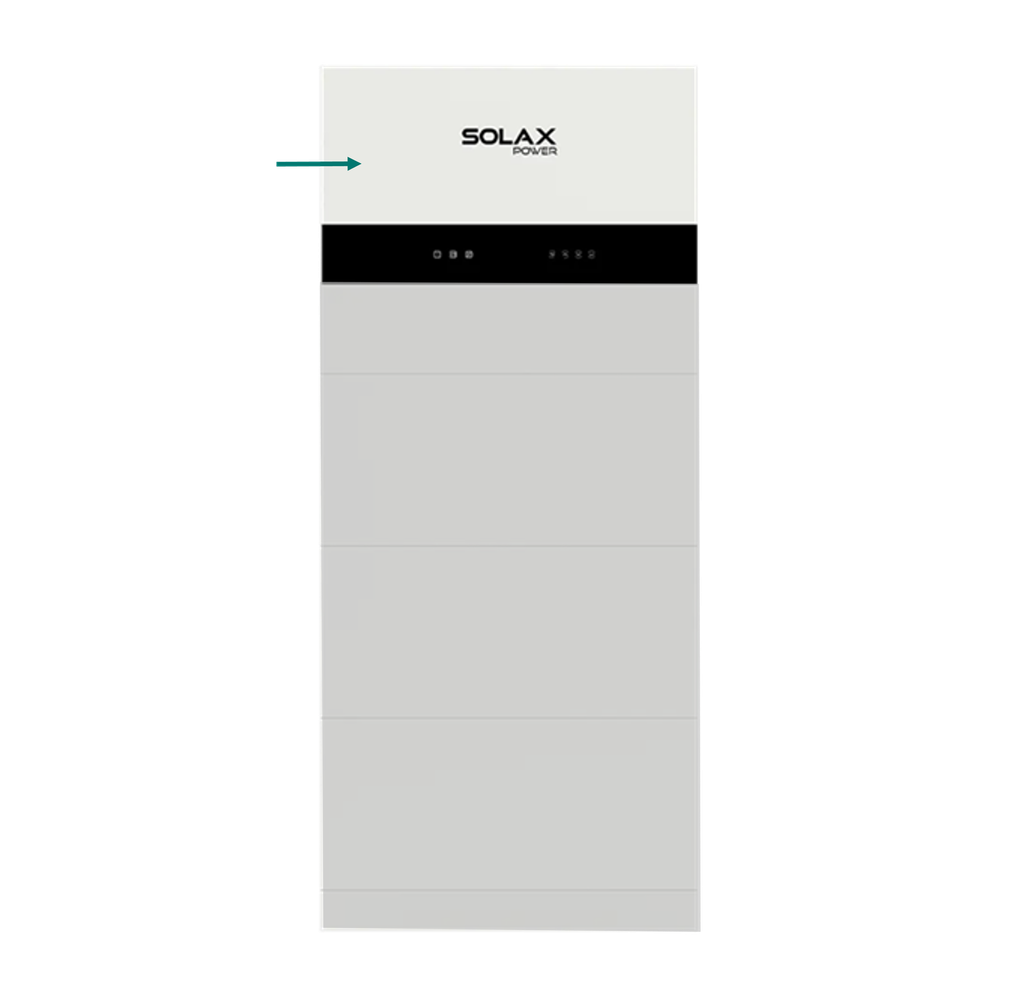

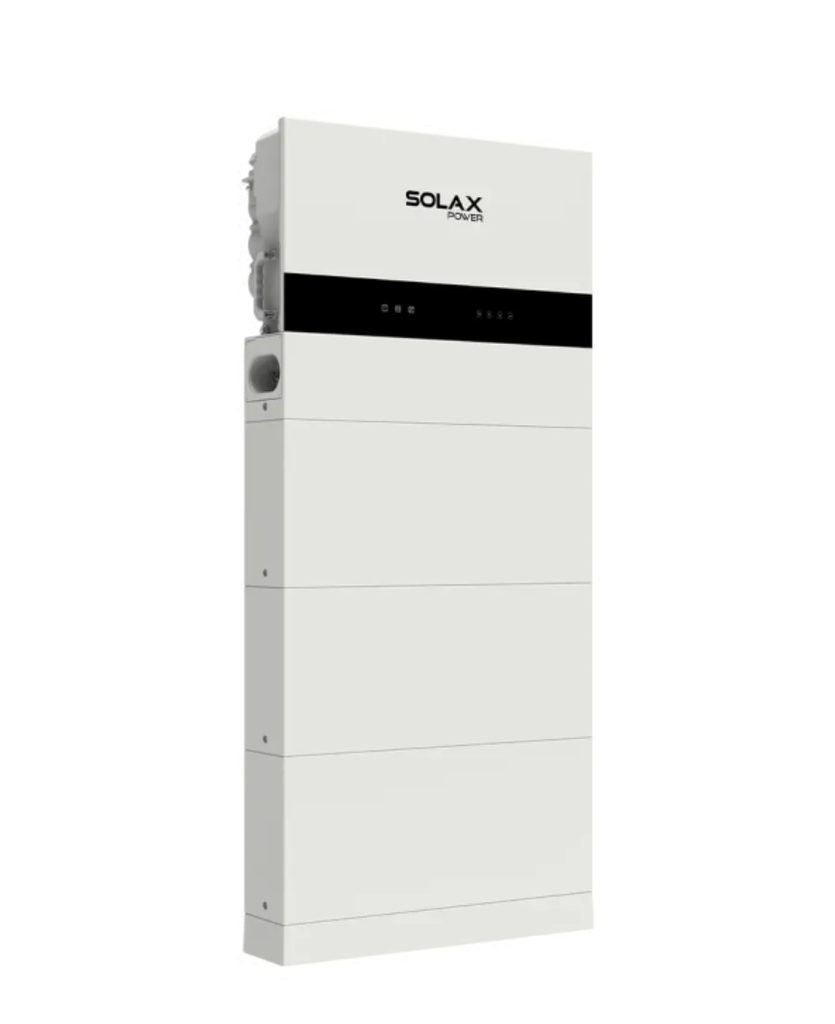

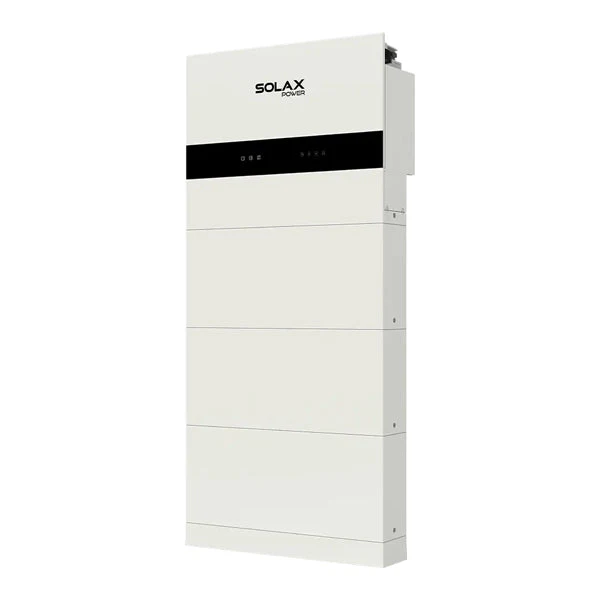

The SolaX X3-IES-10K is a powerful 10kW three-phase hybrid inverter designed to serve as the core of a scalable modular energy storage system. Tailored for residential and small commercial applications, it delivers outstanding performance, backup capability, and seamless integration with high-voltage battery modules and BMS.

⚡ Key Features:

  • 200% PV Oversizing Support
    Connect up to 20kW of PV input to boost energy harvest and system yield.
  • Modular ESS Compatibility
    Works with SolaX high-voltage LiFePO₄ battery modules (10kWh–30kWh range, sold separately) and smart BMS.
  • Smart Energy Management
    Built-in intelligent scheduling, Time-of-Use optimization, and load prioritization for maximum self-consumption and energy cost savings.
  • Fast EPS Backup
    <10ms switchover time with 200% overload support for 10 seconds – perfect for backup-critical devices during outages.
  • Comprehensive Safety Protections
    Includes Type II DC & AC Surge Protection Devices, optional AFCI (Arc Fault Circuit Interrupter), and IP66-rated outdoor-ready housing.
  • Flexible System Integration
    Supports EV charger coordination, heat pump management, and microgrid/multi-mode operations.
  • Easy Installation & Monitoring
    Plug-and-play modular design, lightweight structure, and real-time monitoring via SolaX Cloud.

📐 Technical Summary:

  • Rated AC Output Power: 10,000W
  • Max PV Input Power: 20,000W (200% oversizing)
  • Number of MPPTs: 3
  • Max Input Voltage: 600V
  • Battery Voltage Range: 100V – 550V
  • Max Charge/Discharge Current: 50A
  • EPS Power Support: Yes, with rapid switchover
  • Protection Rating: IP66
  • Dimensions: 717 × 350 × 210 mm
  • Weight: 26.4kg
  • Warranty: 10 years

⚠️ Note: Battery modules and BMS are not included and must be purchased separately for full hybrid operation.
