SolaX X1-IES-8K – 8kW Single-Phase Hybrid Inverter (For IES Modular ESS)

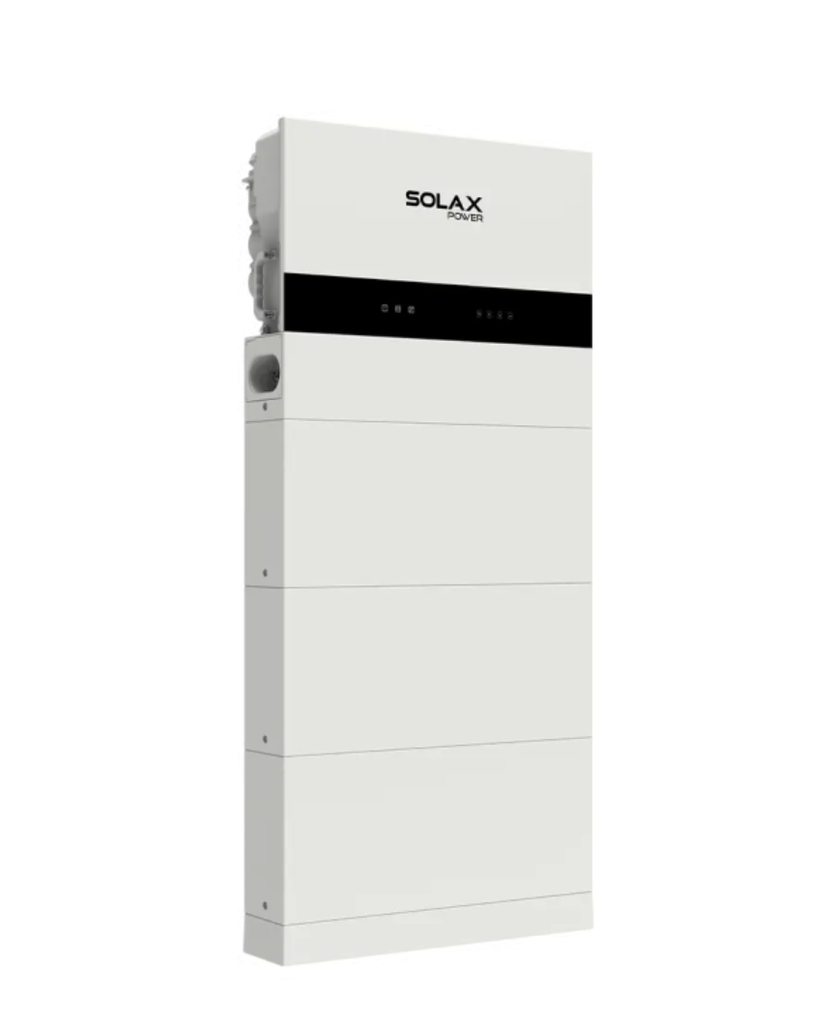

Solax 8.0kW Single Phase IES Inverter (X1-IES-8K)
SolaX X1-IES-8K – 8kW Single-Phase Hybrid Inverter (For IES Modular ESS)

SolaX X1-IES-8K – 8kW Single-Phase Hybrid Inverter (For IES Modular ESS)

https://www.mainergy.co.nz/web/image/product.template/453/image_1920?unique=97dfcbc

$ 0.00 0.0 NZD $ 0.00 GST Excluded

$ 0.00 GST Excluded

Login to see price

  • Stock Available In
  • Inverter Brands
  • Inverter Phases
  • Inverter Types
  • Inverter MPPTs
  • Inverter Kilowatts (kW)

This combination does not exist.


High-Powered, Modular, and Smart Energy Control

The SolaX X1-IES-8K is an 8kW single-phase hybrid inverter designed as the core of a flexible, modular energy storage system. Ideal for residential and small business applications, this inverter integrates advanced energy management with high-efficiency power conversion, and pairs seamlessly with SolaX battery and BMS modules.

🔋 Key Features:

  • Supports 200% PV Oversizing
    Maximize your solar input with up to 16kW of PV connected to an 8kW inverter.
  • Expandable Storage (Optional)
    Compatible with SolaX high-voltage LFP batteries ranging from 5.1kWh to 20.4kWh total capacity (battery and BMS sold separately).
  • Advanced Energy Intelligence
    AI-driven load scheduling, Time-of-Use (ToU) optimization, and automatic energy prioritization.
  • Robust EPS Backup Function
    <10ms switchover time with 200% EPS overload support for 10 seconds — perfect for mission-critical loads during outages.
  • Safety & Longevity
    Cobalt-free LiFePO₄ battery compatibility, Type II SPD (AC/DC), optional AFCI, and IP66-rated enclosure.
  • Installer-Friendly Design
    Lightweight, modular, and plug-and-play — complete setup in as little as 30 minutes.
  • Smart Monitoring
    Fully integrated with SolaX Cloud, offering live system tracking and remote updates.

📐 Technical Summary:

  • Rated Power: 8,000W
  • Max PV Input: 16,000W (200% oversizing)
  • MPPTs: 3 independent trackers
  • Max Efficiency: ≥97.6%
  • PV Voltage Range: 40V – 560V
  • Charge/Discharge Current: Up to 50A
  • Protection Level: IP66
  • Weight: 26.4kg
  • Dimensions: 717 × 350 × 210 mm
  • Warranty: 10 years

⚠️ Note: This product includes the inverter only. Battery modules and BMS must be purchased separately to complete the system.
