Compact Power, Modular Design, Smarter Energy Control

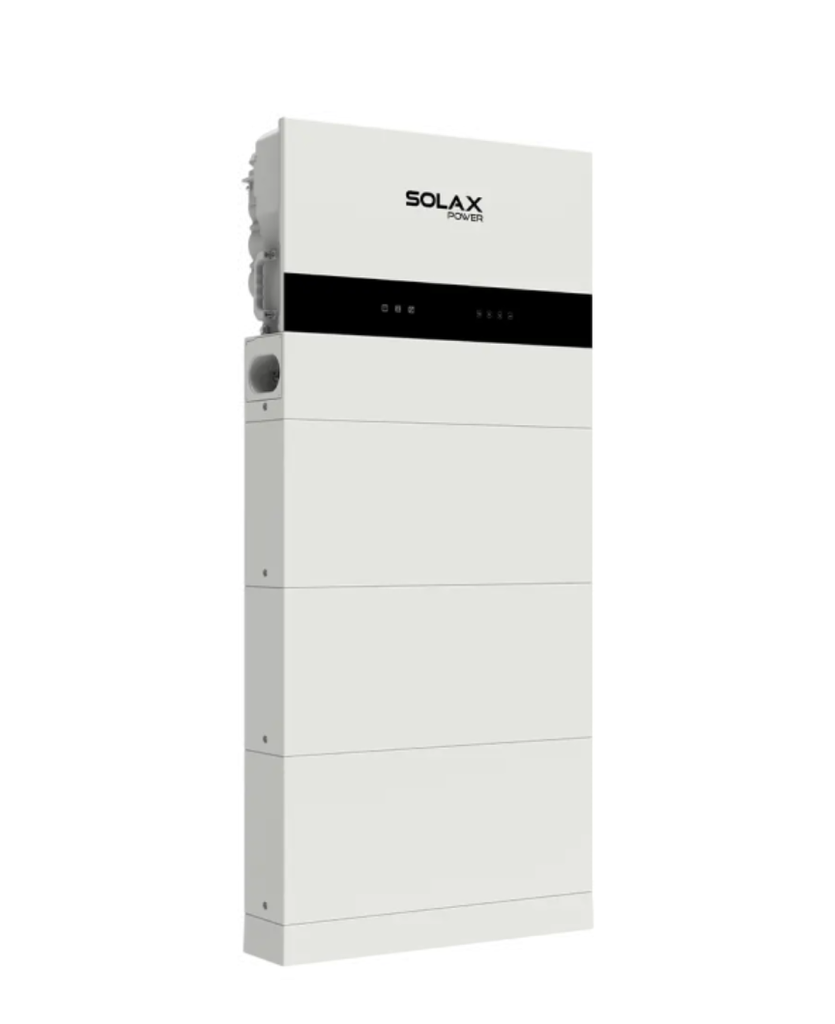

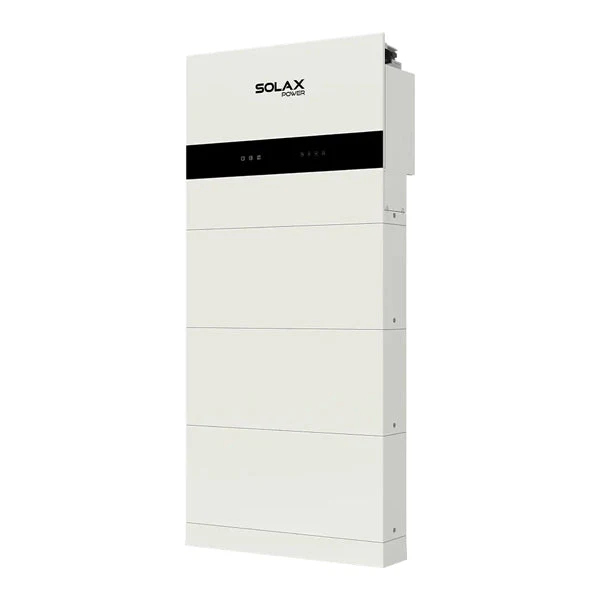

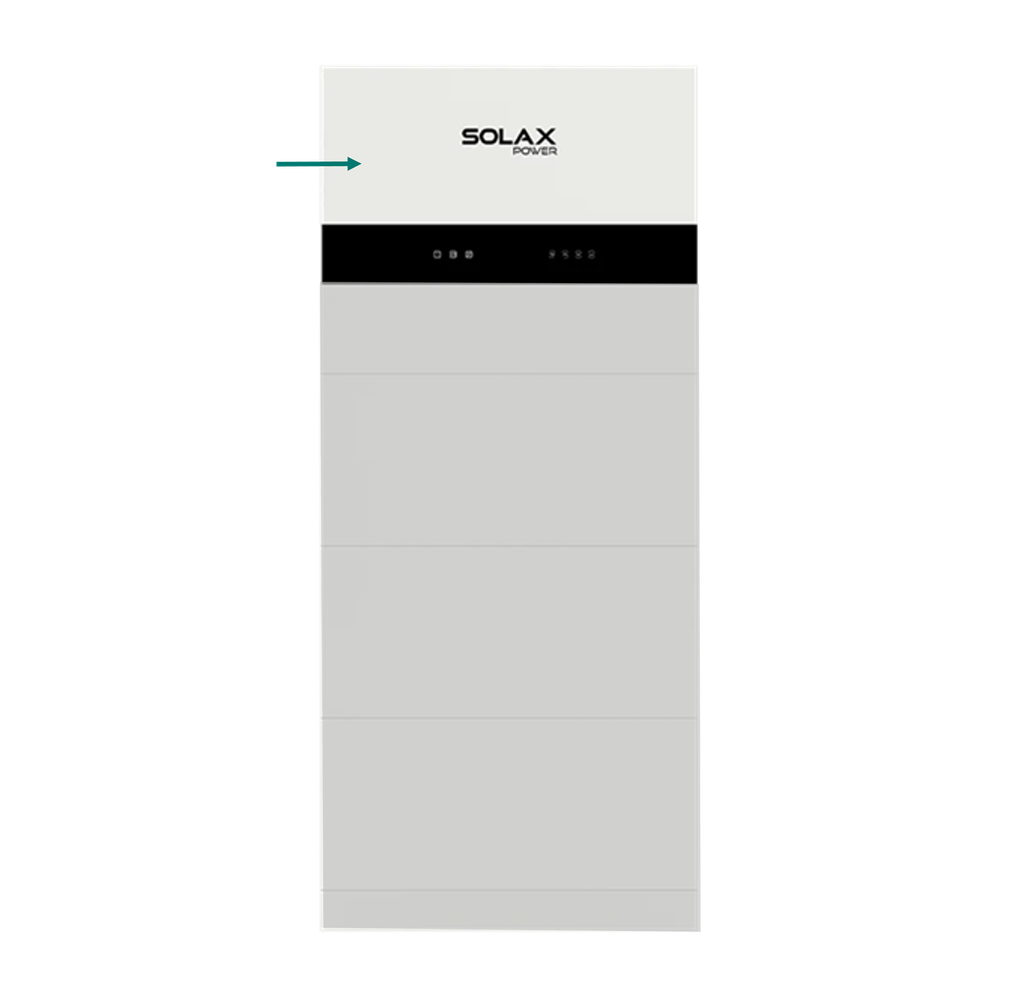

The SolaX X1-IES-6K is a 6kW single-phase hybrid inverter engineered for residential and light commercial applications. As the heart of the SolaX Integrated Energy Storage (IES) system, it offers intelligent energy management, seamless battery integration, and reliable backup power—all within a compact and installer-friendly design.

🔋 Key Features:

  • Supports 200% PV Oversizing
    Connect up to 12kW of solar panels to optimize production, even on smaller rooftops.
  • Flexible Battery Expansion
    Compatible with SolaX high-voltage LFP battery modules, scalable from 5.1kWh to 20.4kWh (battery and BMS sold separately).
  • Intelligent Load Management
    AI-powered smart scheduling and Time-of-Use optimization help lower energy bills and maximize self-consumption.
  • Seamless Backup Functionality
    Automatic <10ms switchover and 200% EPS overload support for 10 seconds—ideal for powering critical loads during outages.
  • Built-in Safety
    IP66-rated enclosure, Type II AC/DC surge protection, and optional AFCI ensure long-term safety and system integrity.
  • Fast & Easy Installation
    Lightweight, modular build allows one-person installation in under 30 minutes.
  • Smart System Monitoring
    Real-time energy tracking, remote firmware updates, and performance alerts via SolaX Cloud.

📐 Technical Summary:

  • Rated Output Power: 6,000W
  • Max PV Input: 12,000W (200% oversizing)
  • MPPTs: 3 independent trackers
  • Max Efficiency: ≥97.6%
  • PV Voltage Range: 40V – 560V
  • Charge/Discharge Current: Up to 50A
  • Protection Level: IP66
  • Weight: 26.4kg
  • Dimensions: 717 × 350 × 210 mm
  • Warranty: 10 years

⚠️ Note: Inverter only – battery modules and BMS must be purchased separately for full hybrid functionality.
