High Power, Smart Control – Tailored for Home Energy Independence

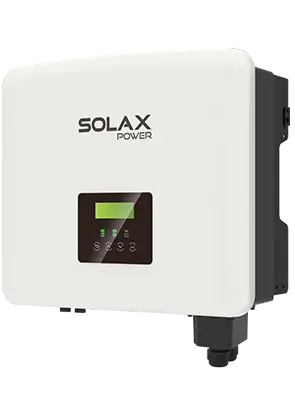

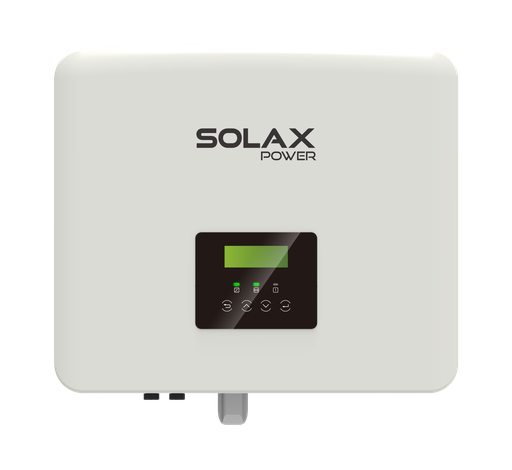

The SolaX X1-Hybrid-7.5-D is a robust single-phase hybrid inverter designed for larger residential solar + storage systems. With enhanced capacity, intelligent energy management, and seamless battery integration, it helps homeowners reduce grid reliance, store surplus energy, and enjoy resilient backup power—all in one streamlined device.

⚡ Key Features:

  • High Output Capacity (7.5kW)
    Supports larger household loads and higher energy demands with ease.
  • 200% PV Oversizing Support
    Connect up to 15kW of solar panels to maximize energy generation throughout the day.
  • Dual MPPT Inputs
    Flexible string configurations for rooftops with varying orientations.
  • Advanced Battery Integration
    Compatible with high-voltage LiFePO₄ battery systems via SolaX's smart BMS (battery & BMS sold separately).
  • Emergency Power Supply (EPS)
    <10ms switchover time ensures continuous power for critical appliances during outages.
  • Smart Load Management
    AI-based scheduling and Time-of-Use optimization to minimize energy costs and increase self-consumption.
  • EV & Heat Pump Compatible
    Easily integrates with smart home devices and electric vehicle chargers.
  • Real-Time Monitoring
    Full remote access and firmware updates via SolaX Cloud platform.
  • Rugged Design
    IP65-rated enclosure for safe outdoor installation in harsh environments.

📐 Technical Summary:

  • Rated Output Power: 7,500W
  • Max PV Input Power: 15,000W
  • MPPTs: 2
  • MPPT Voltage Range: 40V – 560V
  • Battery Voltage Range: 85V – 465V
  • Max Battery Charge/Discharge Current: 30A
  • EPS Output: Yes, <10ms switch
  • Efficiency: Up to 97.8%
  • Protection Level: IP65
  • Weight: ~26kg
  • Dimensions: 482 × 417 × 181 mm
  • Warranty: 10 years

⚠️ Note: Battery modules and BMS not included. Required for full hybrid operation.
