Smarter Solar + Storage for Modern Homes

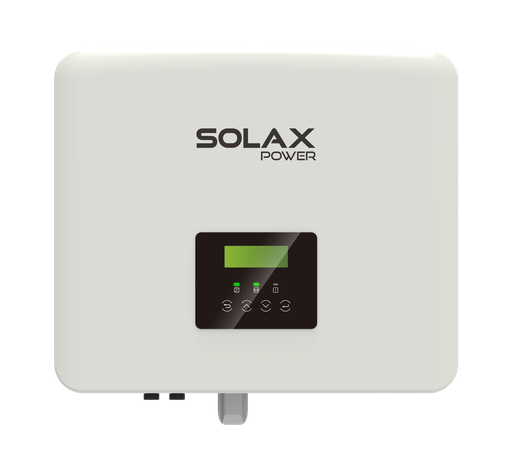

The SolaX X1-Hybrid-5.0-D is a compact and powerful single-phase hybrid inverter, built for residential solar-plus-storage systems. It enables homeowners to maximize self-consumption, store excess solar energy, and maintain power security during grid outages—all with smart control and high efficiency.

🔋 Key Features:

  • Dual MPPT Inputs
    Flexible PV array design for optimized solar harvesting from multiple roof angles.
  • 200% PV Oversizing
    Maximize energy input potential for higher daily yield.
  • High Charging & Discharging Efficiency
    Ensures fast and efficient battery cycling to maximize ROI.
  • Built-in Shadow Tracking
    Improves performance in partially shaded environments.
  • Smart Load Management
    Prioritize household loads and reduce energy waste with intelligent scheduling.
  • Supports Backup Power
    EPS (Emergency Power Supply) function with <10ms switch time for critical appliances during outages.
  • Smart EV Charger Compatible
    Seamless integration with electric vehicle chargers for a complete solar lifestyle.
  • Remote Monitoring
    Real-time system tracking and firmware updates via SolaX Cloud.
  • IP65 Rated & Easy Installation
    Weather-resistant design with user-friendly setup, perfect for residential environments.

📐 Technical Summary:

  • Rated Output Power: 5,000W
  • Max PV Input: 10,000W (200% oversizing)
  • MPPT Voltage Range: 40V – 560V
  • Number of MPPTs: 2
  • Max Efficiency: ≥97.8%
  • Max Battery Charge/Discharge Current: 25A
  • Battery Voltage Range: 85V – 465V
  • EPS Output: Yes (<10ms switchover)
  • Protection Rating: IP65
  • Weight: ~24kg
  • Dimensions: 482 × 417 × 181 mm
  • Warranty: 10 years

⚠️ Compatible high-voltage LFP battery modules required for hybrid functionality (sold separately).
