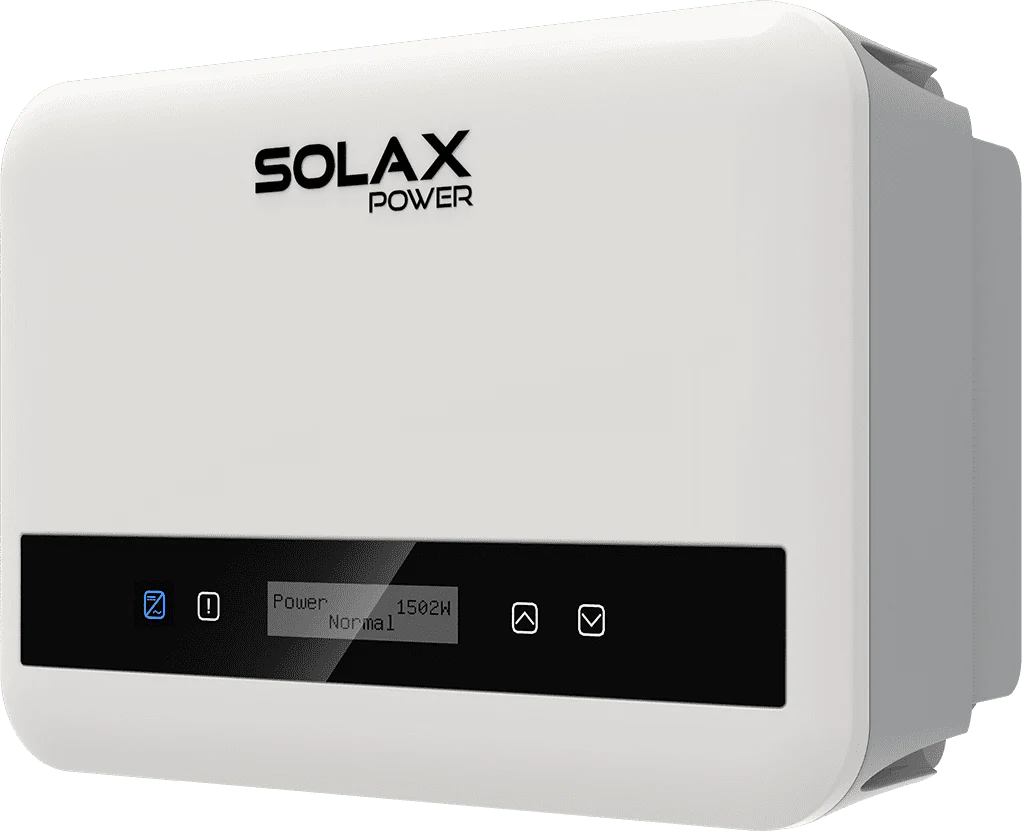

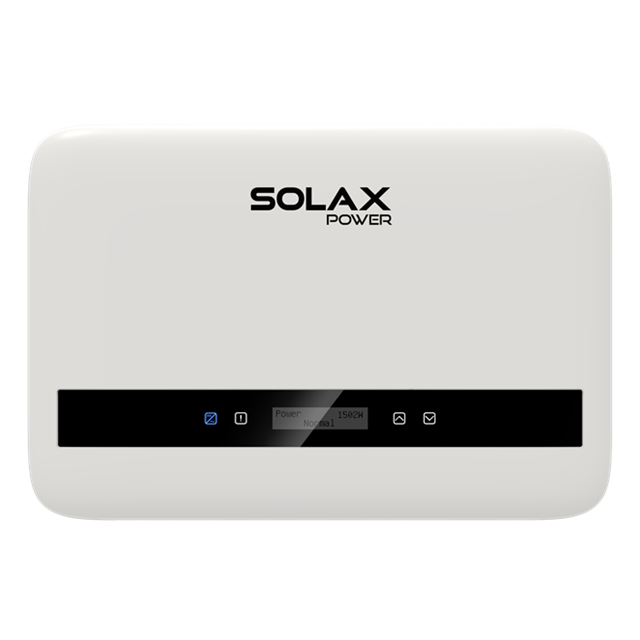

SolaX X1-BOOST-5K-G4 – 5kW Single-Phase PV Inverter (Dual MPPT, DC Switch Built-in)
Powerful Performance in a Compact Package
The SolaX X1-BOOST-5K-G4 is a high-efficiency, single-phase grid-tied inverter designed for residential solar systems. Featuring dual MPPTs, advanced diagnostics, and seamless system integration, it delivers outstanding performance, reliability, and ease of use—all in a compact and lightweight design.
⚡ Key Features:
-
Dual MPPT Inputs
Optimize energy capture across two separate PV strings, ideal for rooftops with multiple orientations. -
Wide MPPT Voltage Range
Ensures stable output and early start-up even in low-light conditions. -
Global MPP Scanning + I-V Curve Diagnosis
Enables intelligent fault detection and precise string monitoring for proactive maintenance. -
Built-in DC Switch & Type II SPD
Enhances installation safety and meets residential compliance requirements. -
Smart Home Ready
Compatible with EV chargers, heat pump controls, and smart home energy systems. -
Real-Time Monitoring
View system performance via the SolaX Cloud on web or mobile app. -
Lightweight & Easy to Install
Just 13.5kg, with a user-friendly wall-mountable design.
📐 Technical Summary:
- Rated AC Power Output: 5,000W
- Max PV Input Power: 7,500W
- Max Input Voltage: 600V
- MPPT Voltage Range: 40V – 560V
- MPPTs / Strings per MPPT: 2 / 1
- Max Efficiency: 98.1%
- Protection Rating: IP66
- Weight: 13.5kg
- Dimensions: 341 × 430 × 143 mm
- Warranty: 10 years
