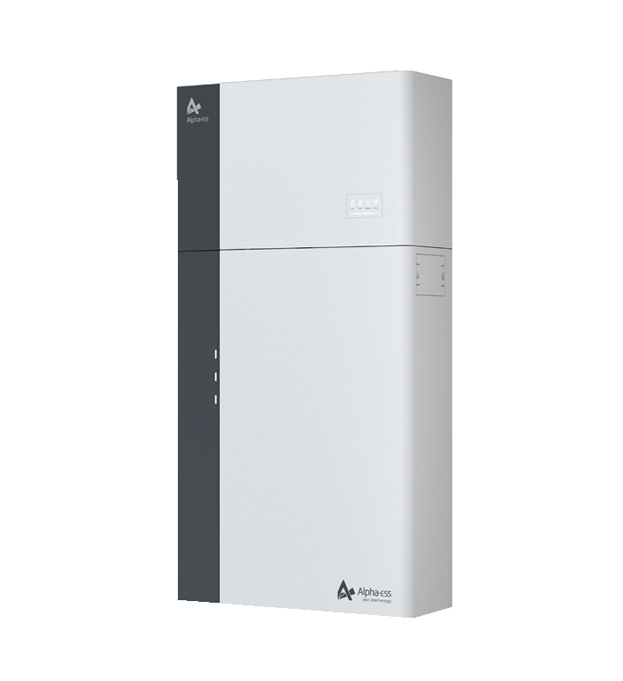

ALPHA-ESS 10.1 kWh Battery Module (SMILE‑G3‑BAT‑10.1P, IP65)

10-year warranty

This combination does not exist.

Modular & Scalable
With a nominal energy capacity of 10.1 kWh and usable capacity of 9.6 kWh (95% Depth of Discharge), you can connect up to six modules in parallel, reaching up to 60.5 kWh total storage ENF Solar+8AlphaESS+8TradeSparky+8.
Robust & Weather‑Resistant
Designed for both indoor and outdoor installation, it carries an IP65 rating, offering excellent protection against dust and water ingress EnergyAustralia+3AlphaESS+3AlphaESS+3 AlphaESS+3AlphaESS+3AlphaESS+3.
Durable & Safe Battery Chemistry
Uses LiFePO₄ (LFP) cells—renowned for long lifespan, thermal stability, and safety EnergyAustralia+3生态超市+3Waxman Energy+3 AlphaESS+5AlphaESS+5TradeSparky+5.
Reliable Performance
- Nominal voltage of 96 V, with operating range between 90–108 V AlphaESS+2TradeSparky+2.
- Capable of 60 A max charge/discharge current AlphaESS+2ENF Solar+2.
- Designed for 8,000 cycles, offering approximately 10 years of expected lifespan under typical use ENF Solar.
Compact & Lightweight for Its Class
Measuring 610 × 212 × 793 mm and weighing around 90 kg, it balances storage density with manageable installation dimensions AlphaESS+5AlphaESS+5Waxman Energy+5.
Certified Safe & Reliable
Complies with international safety standards including UN38.3, IEC 62619, IEC 63056, IEC 62040 AlphaESS+3AlphaESS+3Waxman Energy+3.
