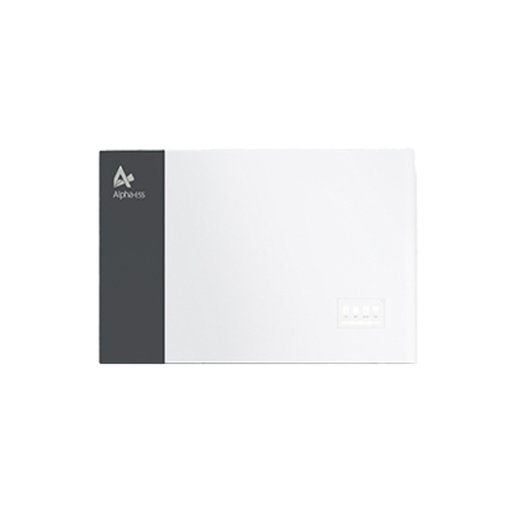

Alpha-Ess 5kW Single Phase Hybrid Inverter 2 Mppts With DC Switch / IP65 （ALPHA-SMILE-G3-S5-INV）
10-year warranty
Key Features
-
Power & Capacity Compatibility
- Rated output power: 5 kW (nominal) VAS+4AlphaESS+4Waxman Energy+4Waxman Energy+9AlphaESS+9AlphaESS+9.
- Works with battery modules ranging from 10.1 kWh up to 60.5 kWh (at 95 % Depth of Discharge) Waxman Energy+8AlphaESS+8AlphaESS+8.
-
Dual MPPTs & High PV Input Support
- Features 2 MPPTs (Maximum Power Point Trackers), each accommodating 1 string AlphaESS+8AlphaESS+8生态超市+8.
- Max PV input power: 10 kW; Max PV input voltage: 580 V; MPPT voltage range: 100–550 V EnergyAustralia+4AlphaESS+4AlphaESS+4.
-
Robust Current Handling
- PV short-circuit current: 18.75 A per MPPT Haneco+10AlphaESS+10aztechsolar.com.au+10.
- Max charging/discharging current: 60 A 生态超市+7AlphaESS+7AlphaESS+7.
-
Efficient & Reliable
- High inverter efficiency: 97.3 % AlphaESS+2AlphaESS+2.
- Designed for hybrid applications with UPS (backup) ability AlphaESSAlphaESS.
-
Weatherproof Design
- IP65 rated for outdoor installation (also supports indoor IP21) AlphaESS+12AlphaESS+12AlphaESS+12.
-
Dimension & Weight
- Compact size: 610 × 212 × 366 mm alphaess.it+7VAS+7AlphaESS+7.
- Lightweight: around 19.5 kg AlphaESS+6VAS+6EnergyAustralia+6.
-
Warranty Coverage
- 10-year battery performance warranty AlphaESS+5AlphaESS+5AlphaESS+5.
-
Connectivity & Compliance
- Integrated Ethernet and Wi‑Fi for smart monitoring and remote control Waxman Energy.
- Meets stringent safety and grid codes: IEC 62109, IEC 62040, EMC: EN 61000‑6‑1/‑2/‑3/‑4; Grid standards: AS 4777.2, NRS 097, VDE 4105, VDE 0126, EN 50549, CEI 0‑21 and more AlphaESS+6VAS+6AlphaESS+6
